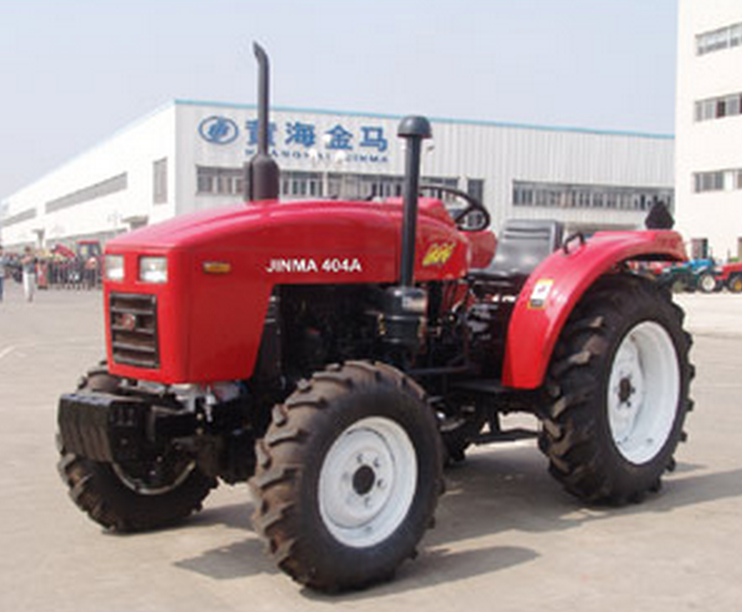

Jinma, JM
| MODEL | JM-404A | ||
| Basic Parameters | Drive Type | 4WD | |
| Overall Dimensions L*W*H(mm) | 3420*1435*1515 | ||
| Wheel Track(mm) | Front | 1200 | |
| Rear | 1150-1450 | ||
| Wheel Base(mm) | 1896 | ||
| Ground Clearance(mm) | 292 | ||
| Rated Traction Force(N) | 9800 | ||
| Min.use weight(kg) | 1925 | ||
| Min.Turming Radirs(m) | 4.6 | ||
| Speed(km/h) | Forward | 2.19,2.92, 4.1,6.091 10.08,13.49, 18.91, 28.07 | |
| Reverse | 2.78,12.83 | ||
| Engine | Model | ZN490BT | |
| Type | 4-Cylinder | ||
| Rated Power(kw/hp) | 29.4/40 | ||
| RatedSpeed(rom) | 2300 | ||
| Bore*Stroke(mm) | 90*100 | ||
| Total Displacement(L) | 2.545 | ||
| Drive System | Cutch | Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair Spiral Bevel Gearing | ||
| Differentiat | Bevel Gear | ||
| Differentiat Lock | Sliding Pin,Foot Operated | ||
| Final Transmission | Planeatry Reduction Gear | ||
| Traveling Mechanism | Tyre | Front | 7.50-16 |
| Rear | 11.2-28 | ||
| Steering Gear | Hydraulic Steering | ||
| Brake | Oil lmmerszd Multiplate Disc | ||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift (N) | 6600 |
| 3-Point Suspension | Category:1 | ||
| P.T.OShaft | Rotating Speed(rpm) | 540/720 or 540/1000 | |
| Spline Size | 6- 35 Rectangular Spline | ||
| OPTIONS | SHFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB | ||
