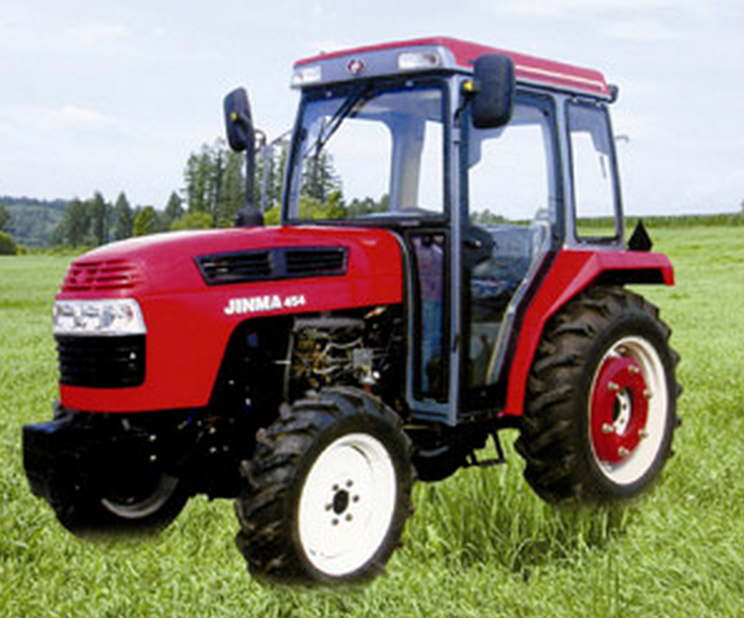

Jinma 454 Tractor

Tractor
Parameters

Model

JM-454

Drive Type

4WD

Overall Dimensions  L*W*H(mm):

3880*1625*2160

Wheel Track  (mm)

Front

1300

Rear

1300-1600

Wheel Base(mm)

1877.5

Ground Clearance (mm)

325

Rated Traction Force(N)

 11700

Construction Mass(kg)

2116

Min.Turning Radius(m)

3.5

Theoretical Speed(Without creeper) ( km/h)

Forward

2.145,3.150,5.122,6.725,9.632,14.150,23.003,30.203

Reserve

3.182,4.675,7.600,9.979

Theoretical Speed(With creeper)(km/h)

Forward

0.321,0.472,0.767,1.007,1.442,2.118,3.443,4.520

Reserve

0.476,0.700,1.138,1.491

Engine
Specifications

Model

490T EPA

Type

4-Cylinder 4-stroke cycle water cooled

Rated Power(kw/hp)

33.1/45

Rated Speed (rpm)

2200

Bore*Stroke(mm)

90X105

Total Displacement(L)

3.039

Drive
System

Clutch

Single-function dry constant meshing

Gear Box

4*(2+1)Sleeve gear

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Displacement(L)

Planeatry reduction gear

Travelling
Mechanism

Tyre

Front

8.3-20

Rear

12.4-28

Steering Gear

Hydraulic steering

Brake

Oil immerszd multiplate disc

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

7500

3-Point Suspension

Category:I

P.T.O
Shaft

Speed (rpm)

540/1000

Spline Size

6-Φ35Rectangular Spline
