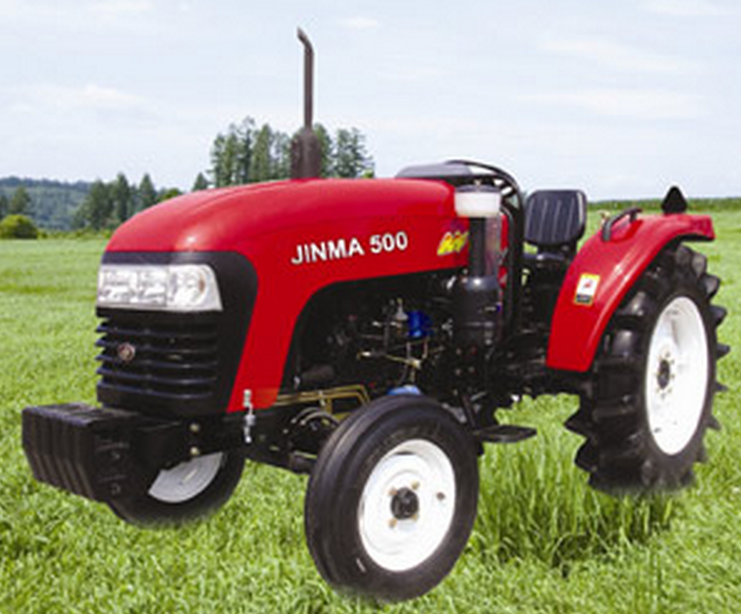

Jinma, JM
Tracor | Model | JM-500 | |
Drive Type | 2WD | ||
Overall Dimensions L*W*H(mm): | 4010*1625*2220 | ||
Wheel Track (mm) | Front | 1250-1550 | |
Rear | 1300-1600 | ||
Wheel Base(mm) | 2008 | ||
Ground Clearance (mm) | Under Front Axle | 450 | |
Under Rear Axle | 370 | ||
Rated Traction Force(N) | 10400 | ||
Construction Mass(kg) | 1910 | ||
Min.Turning Radius(m) | 3.6 | ||
Theoretical Speed (With out creeper gear(km/h) | Forward | 2.243,3.293,5.355,7.031,10.070,14.793,24.049,31.579 | |
Reverse | 3.327,4.888,7.945,10.433 | ||
Theoretical Speed (With creeper gear(km/h) | Forward | 0.336,0.493,0.802,1.053,1.508,2.214,3.600,4.725 | |
Reverse | 0.500,0.732,1.190,1.562 | ||
Engine | Model | SL4100BT | |
Type | 4-Cylinder 4-stroke cycle water cooled | ||
Rated Power(kw/hp) | 36.8/50 | ||
Rated Speed (rpm) | 2300 | ||
Bore*Stroke(mm) | 100*110 | ||
Total Displacement(L) | 3.456 | ||
Drive | Clutch | Single-function dry constant meshing | |
Gear Box | 4*(2+1)Sleeve gear shift | ||
Main Drive | One pair of spiral bevel gear | ||
Differential | Bevel gear | ||
Differential Lock | Sliding pin,foot operated | ||
Final Transmission | Planeatry reduction gear | ||
Travelling | Tyre | Front | 6.00-16 |
Rear | 12.4-28 | ||
Steering Gear | Hydraulic steering | ||
Brake | Oil immerszd multiplate disc | ||
Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 8300 |
3-Point Suspension | Category:I | ||
P.T.O | Rotating | 540/1000 | |
Spline Size | 6-Φ35Rectangular Spline | ||
OPTIONS | SAFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB |
