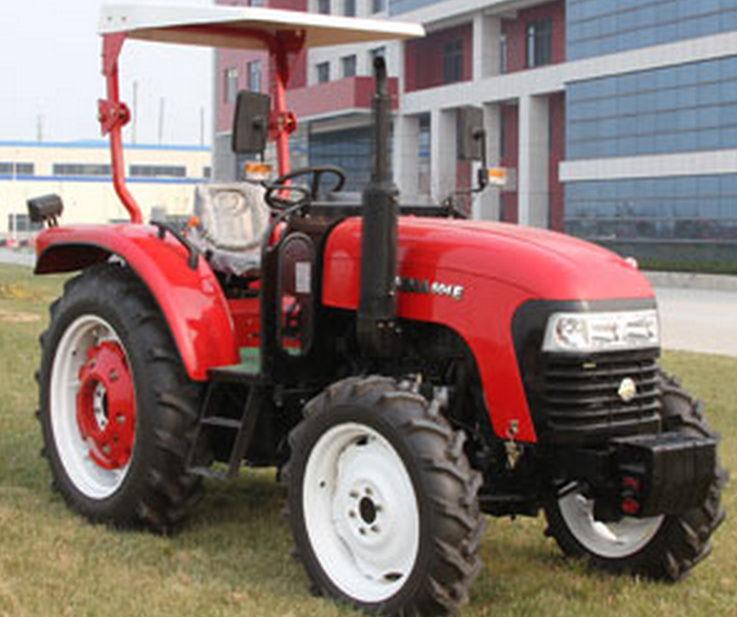

Jinma 504E Tractor

Tractor Basic Parameters

Model

 HHJM-454E

HHJM-504E

Drive Type

4WD

Overall Dimensions L*W*H(mm):

3824*1760*2505

Wheel Track(mm)

Front

1300

Rear

1400

Wheel Base(mm)

2010

Ground Clearance (mm)

325

Rated Traction Force(N)

11700

13000

Construction Mass(kg)

2062

Min.Turning Radius(m)

4.3

12.4-28 Tyre

Forward

2.22,3.57,5.80,7.61,10.97,14.62,23.82,31.21

Reverse

1.67,246,4.00,5.25,7.53,11.05,17.98,23.60

13.6-28 Tyre

Forward

2.43,3.57,5.80,7.61,10.97,16.01,26.09,34.18

Reverse

1.84,2.70,4.38,5.75,8.24,12.11,19.69,25.85

Engine
Specifications

Model

   A498BT3

A498BT1

Type

4-Cylinder Vertical,water cooled,4 stroke cycle

Rated Power(kw/hp)

23.1/45

36.8/50

Rated Speed (rpm)

2400

Bore*Stroke(mm)

95*105

Total Displacement(L)

3.168

Drive
System

Clutch

Dual-Stage

Gear Box

4*2*(1+1)

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Sliding pin

Final Transmission

Planetry Reduction Gear

Traveling
Mechanism

Tyre

Front

8.3-20

Rear

12.4-28

Steering Gear

Full Hydraulic Steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Point (N)

7500

8300

3-Point Suspension

Category:I

P.T.O Shaft

Speed (rpm)

540/1000

Spline Size

6-∮35Rectangular Spline
