Jinma, JM

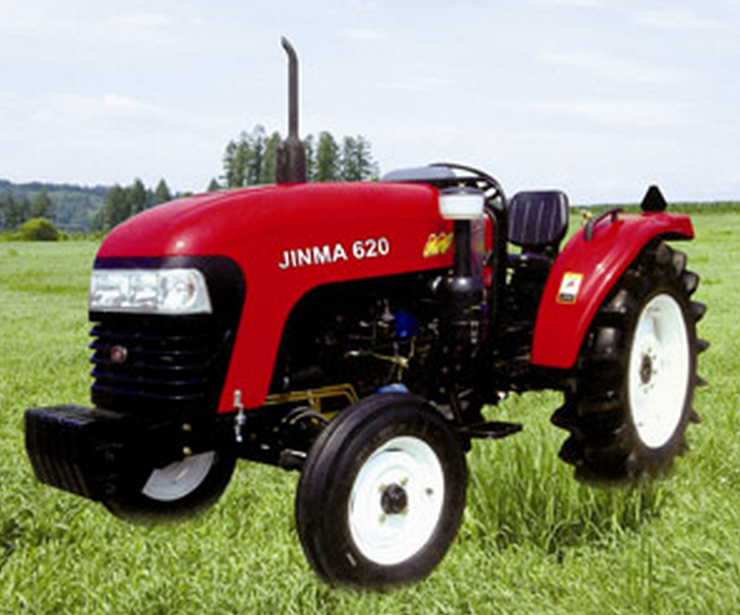

| MODEL | JM-620 | ||
| Basic Parameters | Drive Type | 2WD | |
| Overall Dimensions L*W*H(mm) | 3997*1845*1665 | ||
| Wheel Track(mm) | Front | 1250-1550 | |
| Rear | 1315-1615 | ||
| Wheel Base(mm) | 1994.5 | ||
| Ground Clearance(mm) | 400 | ||
| Rated Traction Force(N) | 12700 | ||
| Min.use weight(kg) | 1900 | ||
| Min.Turming Radirs(m) | 3.7 | ||
| Speed(km/h) | Forward | 2.33,3.42, 5.57,7.31 10.17,15.38, 25.00,32.83 | |
| Reverse | 3.755,5.516, 8.96,11.774 0..562,0.826, 1.342,1.762 | ||
| Engine | Model | YTR4105T | |
| Type | 4-Cylinder | ||
| Rated Power(kw/hp) | 45.6/62 | ||
| RatedSpeed(rom) | 2300 | ||
| Bore*Stroke(mm) | 105*120 | ||
| Total Displacement(L) | 4.157 | ||
| Drive System | Cutch | Dual stage | |
| Gear Box | 4*(2+1)Sleeve Gear | ||
| Main Drive | One Pair Spiral Bevel Gearing | ||
| Differentiat | Bevel Gear | ||
| Differentiat Lock | Sliding Pin,Foot Operated | ||
| Final Transmission | Planeatry Reduction Gear | ||
| Traveling Mechanism | Tyre | Front | 6.50-16 |
| Rear | 12.4-32 | ||
| Steering Gear | Mechanical or Hydraulic Steering | ||
| Brake | Oil lmmerszd Multiplate Disc | ||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift (N) | 10300 |
| 3-Point Suspension | Category:ll | ||
| P.T.OShaft | Rotat(rpm) | 540/720 or 540/1000 | |
| Spline Size | 6- 35 Rectangular Spline | ||
| OPTIONS | SHFETY FRAME,CANOPY,CREEPER,SHUTTLE,SYNCHRONISED GEAR,CAB | ||
