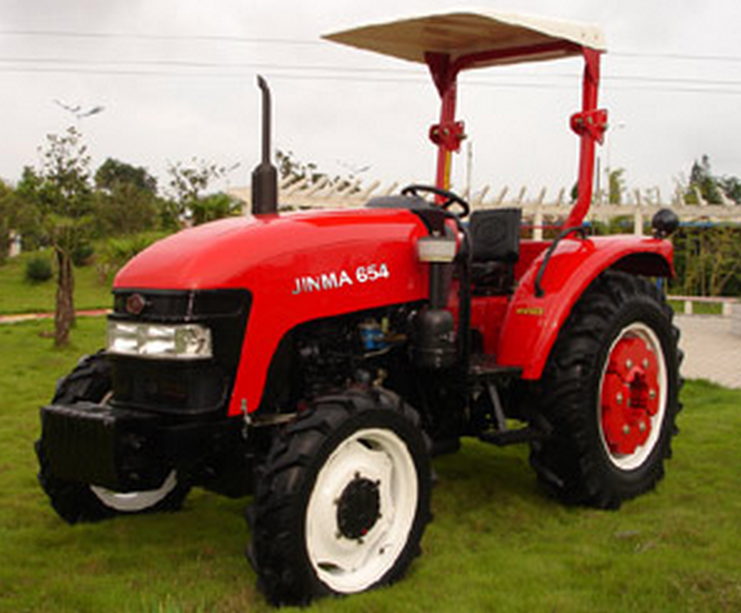

Jinma, JM
| Tracor | Model | JM-654 | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H(mm): | 4010*1929*2568 | ||
| Wheel Track(mm) | Front | 1350-1650 | |
| Rear | 1370-1790 | ||
| Wheel Base(mm) | 2188 | ||
| Ground Clearance (mm) | Under Front Axle | 370 | |
| Under Rear Axle | 430 | ||
| Rated Traction Force(N) |
|
| |
|
| 12000 | ||
| Construction Mass(kg) | 2850 | ||
| Min.Turning Radius(m) | 3.9 | ||
| Speed(km/h) | Forward | 2.77,4.01,6.45,8.09,9.06,16.05,25.82,35.25 | |
| Reverse | 3.15,12.61 | ||
| Engine | Model | YTR4105-T63 | |
| Type | 4-Cylinder 4-stroke cycle water cooled | ||
| Rated Power(kw/hp) | 47.8/65 | ||
| Rated Speed (rpm) | 2200 | ||
| Bore*Stroke(mm) | 105*125 | ||
| Total Displacement(L) | 4.3 | ||
| Drive | Clutch | Single-function dry constant meshing | |
| Gear Box | 4*(2+1)Sleeve gear shift | ||
| Main Drive | One pair of spiral bevel gear | ||
| Differential | Bevel gear | ||
| Differential Lock | Sliding pin,foot operated | ||
| Final Transimission | Planeatry reduction gear | ||
| Travelling | Tyre | Front | 8.3-24 |
| Rear | 12.4-32 | ||
| Steering Gear | Hydraulic steering | ||
| Brake | Oil immerszd multiplate disc | ||
| Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 10800 |
| 3-Point Suspension | Category:II | ||
| P.T.O | Rotating | 540/1000 | |
| Spline Size | 6-φ35Rectangular Spline | ||
| OPTIONS | ROLL BAR,CANOPY,CAB,AIR BRAKE | ||
