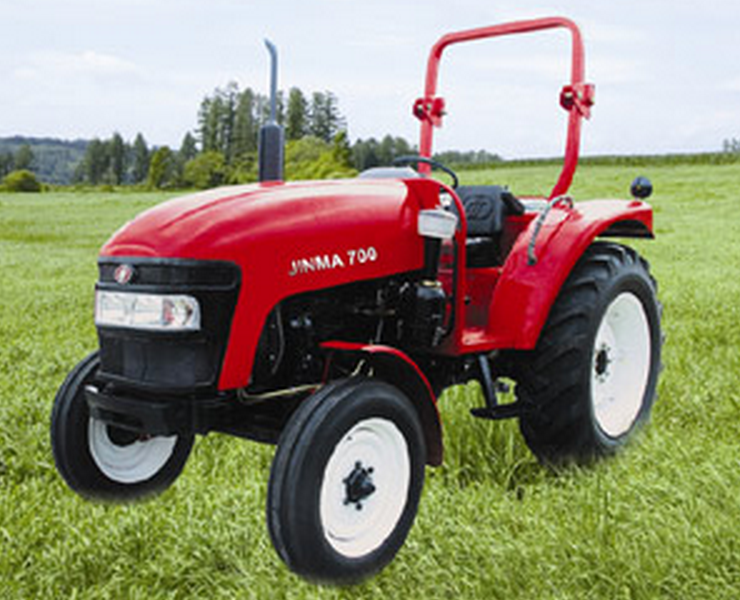

Jinma 700 Tractor

Quantity:
  • Jinma, JM

Tractor
Parameters

Model

JM-700

Drive Type

2WD

Overall Dimensions   L*W*H(mm):

4010*1929*2568

Wheel Track  (mm)

Front

1350-1650

Rear

1370-1790

Wheel Base(mm)

2188

Ground Clearance (mm)

430

Rated Traction Force(N)

12500

Construction Mass(kg)

2900

Min.Turning Radius(m)

3.9

Theoretical Speed (With out creeper gear(km/h)

Forward

2.27,4.01,6.45,8.09,9.06,16.05,25.82,32.25,

Reverse

3.15,12.61

Engine
Specifications

Model

LR4108T79B

Type

4-cylinder 4-stroke cycle water cooled

Rated Power(kw/hp)

51.5(70)

Rated Speed (rpm)

2200

Bore*Stroke(mm)

108*125

Total Displacement(L)

4.6

Drive
System

Clutch

Dual stage

Gear Box

(4+1)*2 Sleeve gear shift

Main Drive

Onepair of spiral bevel gearing

Differential

Bevel gear

Differential Lock

Sliding pin,foot operated

Final Transmission

Planeatry reduction gear

Travelling
Mechanism

Tyre

Front

6.50-20

Rear

14.9-30

Steering Gear

Hydraulic steering

Brake

Disc type

Working
Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (kN)

11.6

3-Point Suspension

Category:II

P.T.O
Shaft

Rotating
Speed (rpm)

720 or 540/1000

Spline Size

6-φ35Rectangular Spline

OPTIONS ROLL BAR,CANOPY,CAB,AIR BRAKE
