Jinma, JM

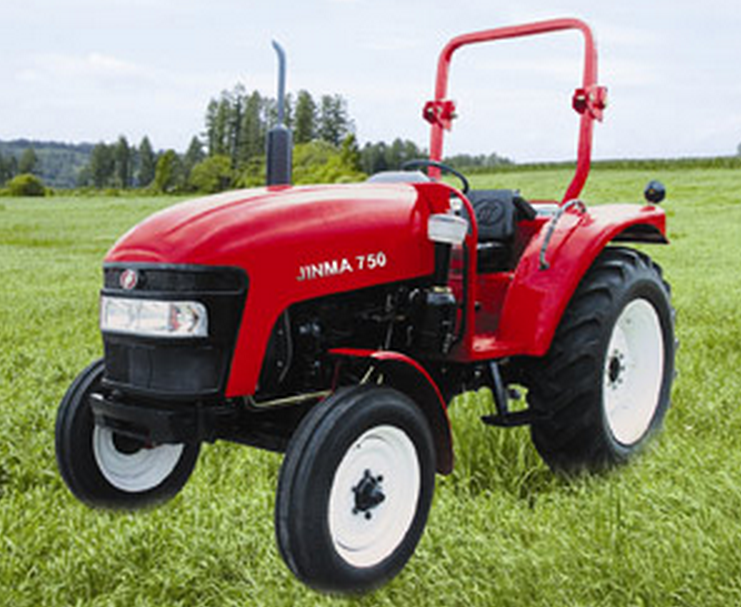

| Tractor | Model | JM-750 | |
| Drive Type | 2WD | ||
| Overall Dimensions L*W*H(mm): | 4085*1929*2568 | ||
| Wheel Track (mm) | Front | 1350-1650 | |
| Rear | 1370-1790 | ||
| Wheel Base(mm) | 2188 | ||
| Ground Clearance (mm) | 430 | ||
| Rated Traction Force(N) | 14400 | ||
| Construction Mass(kg) | 2925 | ||
| Min.Turning Radius(m) | 3.9 | ||
| Theoretical Speed (With out creeper gear(km/h) | Forward | 3.22,4.31,6.83,9.19,11.57,15.50,24.60,33.09 | |
| Reverse | 3.64,13.12 | ||
| Theoretical Speed (With creeper gear(km/h) | Forward | 0.73,0.97,1.54,2.08,2.61,3.50,5.55,7.47 | |
| Reverse | 0.82,2.96 | ||
| Engine | Model | LR4108T79A | |
| Type | 4-cylinder 4-stroke cycle water cooled | ||
| Rated Power(kw/hp) | 55(75) | ||
| Rated Speed (rpm) | 2300 | ||
| Bore*Stroke(mm) | 108*125 | ||
| Total Displacement(L) | 4.6 | ||
| Drive | Clutch | Dual stage | |
| Gear Box | (4+1)*2*2 Sleeve gear shift | ||
| Main Drive | Onepair of spiral bevel gearing | ||
| Differential | Bevel gear | ||
| Differential Lock | Sliding pin,foot operated | ||
| Final Transmission | Planeatry reduction gear | ||
| Traveling | Tyre | Front | 8.3-24 |
| Rear | 14.9-30 | ||
| Steering Gear | Hydraulic steering | ||
| Brake | Disc type | ||
| Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (KN) | 12.4 |
| 3-Point Suspension | Category:II | ||
| P.T.O | Rotating | 720 or 540/1000 | |
| Spline Size | 6-φ35Rectangular Spline | ||
| OPTIONS | ROLL BAR,CANOPY,CAB,AIR BRAKE | ||
