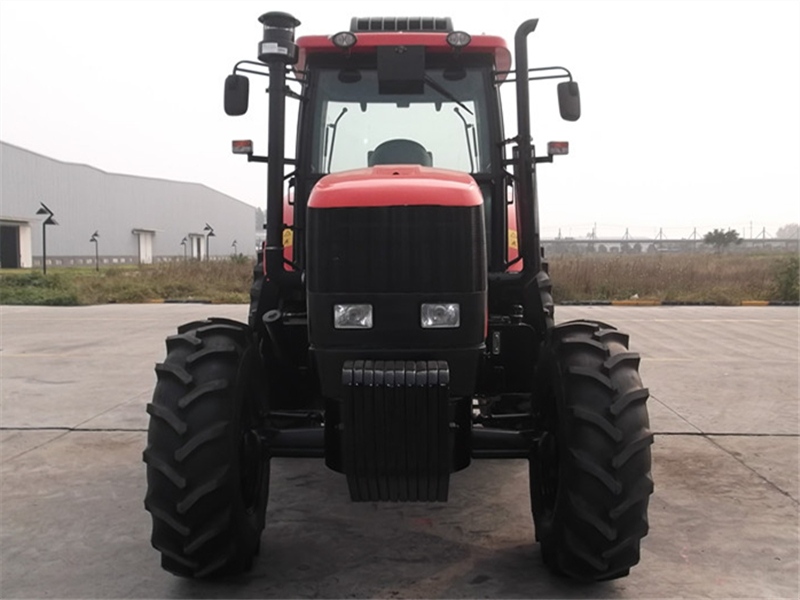

KAT 1304A tractor

1. Weichai Deutz six cylinder engine(turbocharger、intercooling)
2. Fully enclosed cab, air conditioner, air heater
3. 16+4 shifts of transmission, shifting synchronizer, integrated frame
4. Driving system with modularized structure
5. CARRARO front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft
Quantity:
  • KAT 1304A

  • KAT

  • 87019110

Weichai Deutz six cylinder engine(turbocharger、intercooling) is designed with 12 hours rated power(97.5kw), fully enclosed cab, air conditioner, air heater, 16+4 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure,CARRARO front axle,construction machinery rear axle, caliper disc brake, replaceable power output shaft, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, two groups of hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category II.
Model
KAT1304A
Engine

Power/speed kW/r/min 97.5(130)/2200
Specific Fuel Consumption g/kw.h ≤220
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 50900/2300/3070
Wheel Base mm 2688
Track(Front wheel) mm 1698-2122
Track(Rear wheel) mm 1626-2150
Min. Ground Clearance mm 460
Min.running weight kg 5700
Front counter weight kg 500
Rated Traction Force kN 30
No. of gear
16F+4R
Forward Gear Speed km/h 4-33
Reverse Gear Speed km/h 6-28
Type Model

Front Tires    / 14.9-24R1
Rear Tires    / 18.4-38R1
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 31
