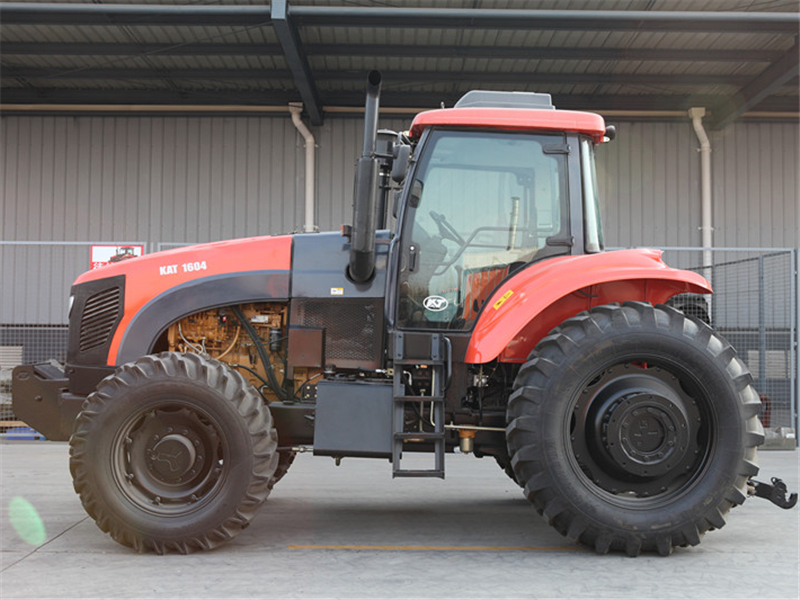

KAT 1604 tractor

1. Shangchai six cylinder engine(turbocharger、intercooling)
2. Fully enclosed cab, air conditioner, air heater
3. 24+8 shifts of transmission, shifting synchronizer, integrated frame
4. Driving system with modularized structure
5. CARRARO front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft
Quantity:
  • KAT 1604

  • KAT

  • 87019110

Shangchai six cylinder engine (turbocharger、intercooling)is designed with 12 hours rated power(118kw),  fully enclosed cab, air heater, air conditioner, Fast eight shift transmission, 24+8 shifts, shifting synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, double rear tire, caliper disc brake, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III.
Model
KAT1604
Engine

Power/speed kW/r/min 118(160)/2200
Specific Fuel Consumption g/kw.h ≤220
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 5990/2580/3280
Wheel Base mm 3080
Track(Front wheel) mm 1888-2124
Track(Rear wheel) mm 1952-2568
Min. Ground Clearance mm 450
Min.running weight kg 7800
Front counter weight kg 400
Rated Traction Force kN 36
No. of gear
24F+8R
Forward Gear Speed km/h 2-34
Reverse Gear Speed km/h 2-19
Type Model

Front Tires    / 14.9-28
Rear Tires    / 18.4-38
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 36
