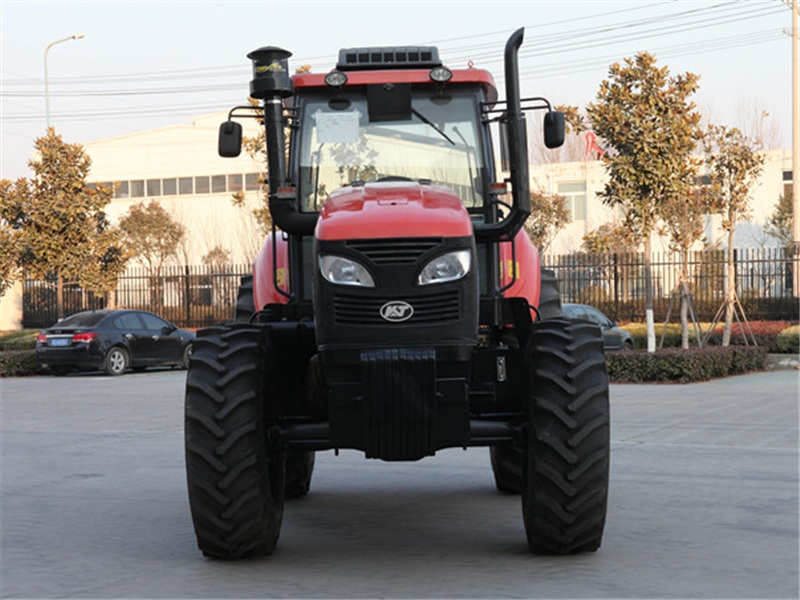

KAT 1804 tractor

1. Shangchai six cylinder engine(turbocharger、intercooling)
2. Fully enclosed cab, air conditioner, air heater
3. 24+8 shifts of transmission, shifting synchronizer, integrated frame
4. Driving system with modularized structure
5. CARRARO front axle,construction machinery rear axle
6. Caliper disc brake, replaceable power output shaft
Quantity:
  • KAT 1804

  • KAT

  • 87019110

Shangchai six cylinder engine (turbocharger、intercooling)is designed with 12 hours rated power(132.5kw), fully enclosed cab, air heater, air conditioner, Fast eight shift transmission, 24+8 shifts, shifting synchronizer, integrated frame, driving system with modularized structure, CARRARO front axle,construction machinery rear axle, double rear tire, caliper disc brake, revolution for power output shaft of dual revolution 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category III.
Model
KAT1804
Engine

Power/speed kW/r/min 132.5(180)/2200
Specific Fuel Consumption g/kw.h ≤220
Drive Type    / 4×4
Dimension(Length/Width/Height) mm 5990/2580/3300
Wheel Base mm 3080
Track(Front wheel) mm 1928-2240
Track(Rear wheel) mm 1952-2568
Min. Ground Clearance mm 450
Min.running weight kg 8200
Front counter weight kg 500
Rated Traction Force kN 40
No. of gear
24F+8R
Forward Gear Speed km/h 2-36
Reverse Gear Speed km/h 2-19
Type Model

Front Tires    / 16.9-28
Rear Tires    / 20.8-38
Power-output shaft Type    / Rear position or independent
power-output shaftRated Speed r/min 540/1000
Max. Pull-down piston pull kN 40
