FOTMA

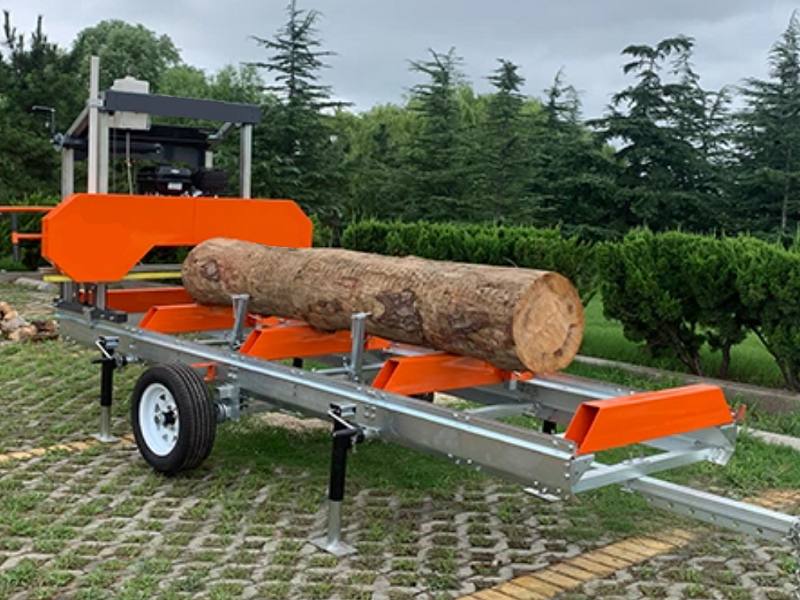

The sawmill is an entry-level portable sawmill packed full of impressive features with a budget-friendly price, which is designed for hobby sawyers looking for an economical solution to mill lumber. The FOTMA sawmill adds new features like the adjustable blade guide system, auto lube, an operation hour meter, wider cut capability and much more.
Fotma portable band mills has designed the FM26 sawmill for budget-minded customers looking at getting into milling their own lumber at an exceptional price point. Based on welcomed FM26 model, the FM31 offers hobby sawyers an easy to use, well engineered sawmill with the ability to mill logs up to 31" in diameter and 110" (2.79m) in length. The FM26/31 also supports an unlimited ability to extend your track to handle milling logs of any length.
Advantage
1. The machine has the features of high cutting speed,high cutting rate,high quality of final product,great reduce the lost of sawdust.
2. It is simple installation, easy operation, labor saving , and high productivity.
3. Simple , safe and pro-environment;
4. Automatic control the timber thickness, high-precision.
5. High cutting efficiency, smooth; high flatness of the cutting plate;
6. The thickness of processing wood can be adjusted according to your need
7. There's no need the professional sawyers, the ordinary workers can operate the machine expertly.
The sawmill is an entry-level portable sawmill packed full of impressive features with a budget-friendly price, which is designed for hobby sawyers looking for an economical solution to mill lumber. The FOTMA sawmill adds new features like the adjustable blade guide system, auto lube, an operation hour meter, wider cut capability and much more.
Fotma portable band mills has designed the FM26 sawmill for budget-minded customers looking at getting into milling their own lumber at an exceptional price point. Based on welcomed FM26 model, the FM31 offers hobby sawyers an easy to use, well engineered sawmill with the ability to mill logs up to 31" in diameter and 110" (2.79m) in length. The FM26/31 also supports an unlimited ability to extend your track to handle milling logs of any length.
Advantage
1. The machine has the features of high cutting speed,high cutting rate,high quality of final product,great reduce the lost of sawdust.
2. It is simple installation, easy operation, labor saving , and high productivity.
3. Simple , safe and pro-environment;
4. Automatic control the timber thickness, high-precision.
5. High cutting efficiency, smooth; high flatness of the cutting plate;
6. The thickness of processing wood can be adjusted according to your need
7. There's no need the professional sawyers, the ordinary workers can operate the machine expertly.
Model | FM26G | FM31G | FM26E | FM31E |
Power | Gasoline9HP | Gasoline15HP | Electric 5.5KW | Electric 7.5KW |
Displacement | 301cc | 420cc | 400V 50HZ 3 phase | |
Cutting capacity | 26''*7''*110'' | 31''*7''*110'' | 26''*7''*110'' | 31''*7''*110'' |
Frame | 4 pcs | |||
Blade size | 3670*34*0.9mm | |||
Safe cutting speed | 13-15s/m | |||
Blade speed | 17m/min | |||
Distance teeth | 22mm | |||
Blade wheel Dia | 475mm | |||
Dimension | 4064*1778*1800mm | |||
Weight | 312kgs | 344kgs | 352kgs | 380kgs |
Model | HST4 | HST6 |
Trailer axle | 50*50mm | |
Trailer size | 3970(+1000mm)*900*700mm | 6000(+1000mm)*900*700mm |
Trailer lights | LED light kit | |
Trailer leveling jacks | 6 pcs | 8pcs |
Trailer ball coupler | 2(50mm) | |
Finish | Galvanized | |
Weight | 350/385kg | 380/415 |
Model | FM26G | FM31G | FM26E | FM31E |
Power | Gasoline9HP | Gasoline15HP | Electric 5.5KW | Electric 7.5KW |
Displacement | 301cc | 420cc | 400V 50HZ 3 phase | |
Cutting capacity | 26''*7''*110'' | 31''*7''*110'' | 26''*7''*110'' | 31''*7''*110'' |
Frame | 4 pcs | |||
Blade size | 3670*34*0.9mm | |||
Safe cutting speed | 13-15s/m | |||
Blade speed | 17m/min | |||
Distance teeth | 22mm | |||
Blade wheel Dia | 475mm | |||
Dimension | 4064*1778*1800mm | |||
Weight | 312kgs | 344kgs | 352kgs | 380kgs |
Model | HST4 | HST6 |
Trailer axle | 50*50mm | |
Trailer size | 3970(+1000mm)*900*700mm | 6000(+1000mm)*900*700mm |
Trailer lights | LED light kit | |
Trailer leveling jacks | 6 pcs | 8pcs |
Trailer ball coupler | 2(50mm) | |
Finish | Galvanized | |
Weight | 350/385kg | 380/415 |
