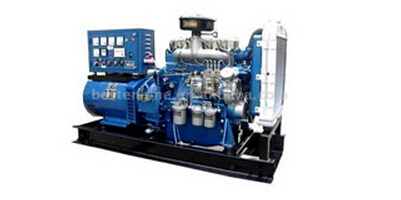

New Holland Series 20-30kw Generator

Quantity:
  • New Holland

MODEL OF GEN-SET GB20NH GB24NH GB30NH
DIESEL ENGINE Model 495AD 495AD 495AZD
Type Four-stocke,water-cooling,vertical
Nb. of cylinder 4 4 4
Bore*Stroke(mm) 95*115 95*115 95*115
Ttl.Displacement(L) 3.26 3.26 3.26
Compression ratio 16.5:1 16.5:1
Air intake mode naturally-aspriated turbocharged
Rated output(KW) 33.0KW 33.0KW 37.7KW
Rated speed(rpm) 1500
Fuelconsumption(g/kw.h) ≤251.6 ≤251.6 ≤251.6
Oil consumption(g/kw.h) 1.4 1.4 1.4
Cooling method water-cooled with radiator
Starting method D.C.12V or 24V Electric starting
ALTERNATOR Model TF(D)W-20KW-4P TF(D)W-24KW-4P TF(D)W-32KW-4P
Rated power 20KW 24KW 30KW
Rated voltage 220V, 380/220V, …/120/240V, 208/120V…
Rated current 83.3A/166.6A 100A/200A 125A/250A
Rated frequency 50HZ/60Hz
Rated speed(rpm) 1500/1800
Power factor 1 for single phase/0.8 lagging for 3-phase
Phase connection single phase or three phase
Winding connection 3 or 4 -wire connected(12-wire for 3-phase)
Excitation method Brushless
Voltage regulation AVR
CONTROL PANEL V-meter,A-meter,Frequency meter , circuit breaker,transfer switch,AVR, temp. and pressure gauges, lighter,hour meter,engine protection device, key starter, etc.
G/N. WET(kg) 980/920 1000/940 1100/1000
PACKING SIZE(cm) 200*98*112 205*98*112 230*110*130
