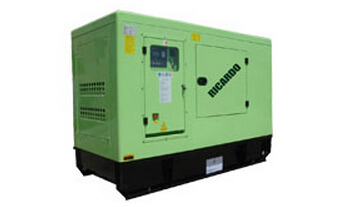

Ricardo
MODEL OF GEN-SET | GB80SR | GB100SR | GB120SR | GB150SR | ||
Continuous output of gen-set | 80KW | 100KW | 120KW | 150KW | ||
DIESEL ENGINE | Model | R6105ZD | R6105 AZLD | R6105 IZLD | R6113ZLD | |
Type | Water-cooled, Four-stroke, in-line, direct injection | |||||
No.of cyliner | 6 | 6 | 6 | 6 | ||
Bore*Stroke (mm) | 105*125 | 105*125 | 105*135 | 113*125 | ||
Ttl.Displacement(L) | 6.49 | 6.49 | 7.01 | 7.52 | ||
Compressionratio | 16:01 | 16:01 | 16:01 | 16:01 | ||
Induction system | Turbocharged with intercooler | |||||
Ratedoutput(KW) | 90KW | 110KW | 134KW | 175KW | ||
Ratedspeed (rpm) | 1500 | |||||
Fuelconsumption(g/kw.h) | ≤224 | ≤218 | ≤215 | ≤225 | ||
Oil consumption (g/kw.h) | 1.63 | 1.63 | 1.63 | ≤1.54 | ||
Cooling method | water-cooled with radiator | |||||
Starting method | D.C.12V or 24V Electric starting | |||||
ALTERNATOR | Model(stamfordas option) | TFW-80KW | TFW-100KW | TFW-120KW | TFW-150KW | |
Rated power | 80KW | 100KW | 120KW | 150KW | ||
Rated voltage | 380/220, 400/230, 220V, 230V etc. | |||||
Rated current | According to the selected voltage and phase | |||||
Rated frequency | 50HZ | |||||
Ratedspeed(rpm) | 1500 | |||||
Power factor | 1 for single phase/0.8 lagging for 3-phase | |||||
Phase connection | 1-phase or 3-phase | |||||
Winding connection | 3 or 4 -wire connected(12-wire for 3-phase) | |||||
Excitation method | Brushless | |||||
15GF(LDE)Voltage regulation | AVR | |||||
CONTROL PANEL | V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, AVR, temp.and pressure gauges, indicating lamp, hour meter,engine protection device, key starter, etc. | |||||
G/N. WET (kg) | 2150/2050 | 2550/2450 | 2600/2500 | 2800/2650 | ||
PACKING SIZE (m) | 2.8*1.3*1.65 | 2.85*1.3*1.65 | 2.85*1.3*1.65 | 3.2*1.45*1.73 |
