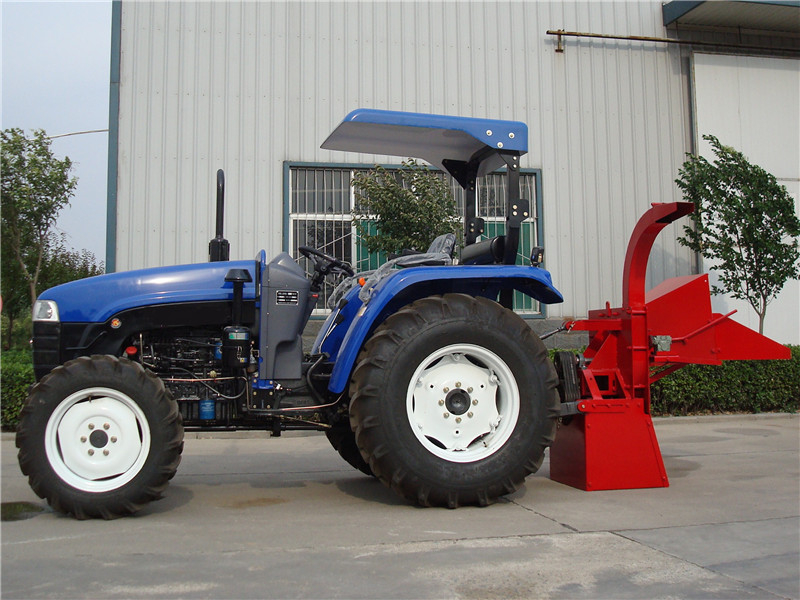

SM Series Wood Chipper

1. Oversize heavy duty rotor;
2. Reversible chipping blades;
3. Easily control;
4. Double adjustable Exit Chute.

1. Perfect for those clean-ups after a storm,pruning or just processing general gardening wastes;
2. Creating mulch for garden plants and trees for conserving water.

1. At the heart of the BX Chipper is an oversize heavy duty rotor and reversible chipping blades;
2. The self-feed hopper is designed to angle the brush against the rotor and blades, pulling the branches into the chipper;
3. Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance.
Model SM06 SM08
Drive system PTO(20-40HP) PTO(35-50HP)
Max chipping Dia. 6” 8”
Flywheel Dia. 24” 26”
Feeding system Mechanical feeding(Standard)

Hydraulic feeding, adjustable speed(Optional)
Chipper knives 2 2
Chip size Thickness6mm
Rotation angle of outlet 360°
Mounting Type 3-point hitch
Working efficiency 5-7m3/h 8-15m3/h
Weight(kg) 340 450
