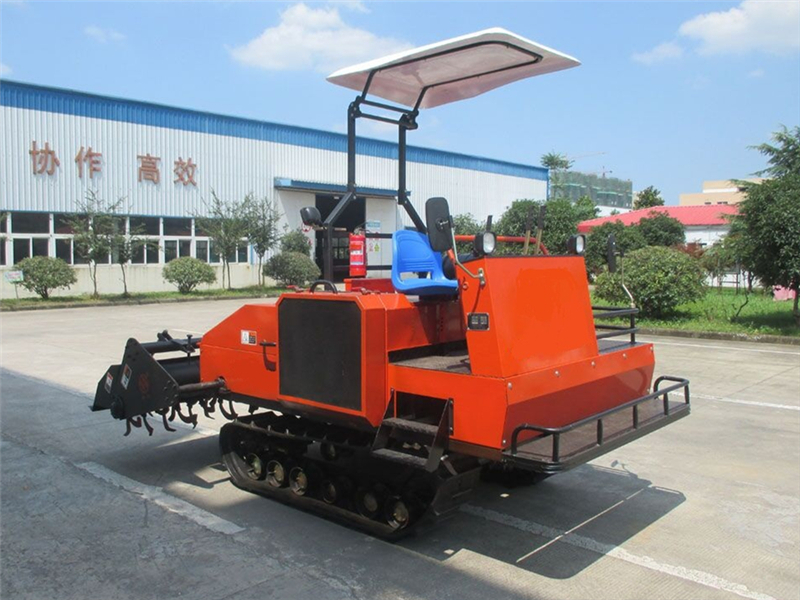

Self-Propelled Crawler Type Rotary Tiller

1.High efficiency
2.Low fuel consumption
3.Simple operation
4.Easy maintenance
5.Good performance
Quantity:
  • 1GLZ-180

  • FOTMA

It takes new technology, rubber crawler walking institutions. The former drive improves the rotary tiller anti-sinking performance. Power will be passed from the gear box to the two sides of the knife axis. Rotary knifes are symmetrical distribution. The whole structure is rigorous, high strength, light weight, smooth operation. Field performance is stable and reliable. Our model has high efficiency, low fuel consumption, simple operation, easy maintenance, which can be used for cultivated land.

The machine has a dry land of dry land, paddy soil mud slag pulp, plow surface after planting, good weed recommended coverage. The same depth of farming is easy to subsidence and high operating efficiency, which work one time and can reach the same efficiency of several working of plough and harrow. That is applicable to rice and wheat in dry land cultivation. It is also suitable for the shallow tillage of salt and alkali fields, which plays a role in inhibiting the increase of salt content, as well as the fine cultivation of vegetable tobacco ground, the tillage cultivation of sugarcane, its rotary tillage performance, ridge ditch performance, sowing function, the use of reliability and aquaculture are better than similar domestic models, welcomed by the majority of farmers friends.
Model 1GLZ-180
Engine type A498BT-25
Rated output 45kw
Rated speed 2600rpm
Dimension 3530*1870*2500mm
Whole machine quality 1775kgs
Rubber belt track gauge 1200mm
Rubber belt track track width 350/400mm
Rubber belt track track section number 48/90
Tilling depth 100-180mm
Breadth 1800mm
Net working hours 0.27-0.4hm2/h
Oil consumption 16-20kg/hm2
Rotary tillage cutter speed 315r/min
Rotary tillage blade style l T245
Rotary tillage blade quantity 24 sets per side
