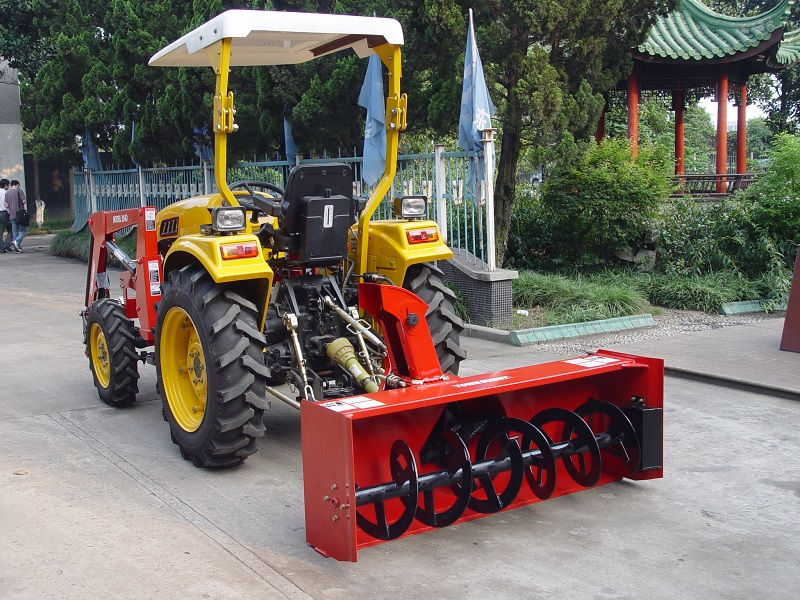

Snow Blower

Quantity:
  • FOTMA
SPECIFICATION FOR Snow Blower



MODEL B5418F B5418PTO B6618F B6618PTO
CUTTING WIDTH  54″ 54″ 66″ 66″
CUTTING HEIGHT  22″ 22″ 22″ 22″
FAN 4-BLADES 4-BLADES 4-BLADES 4-BLADES
FAN DIAMETER 18″ 18″ 18″ 18″
FAN DEPTH 4.8″ 4.8″ 4.8″ 4.8″
AUGER DIAMETER 15″ 15″ 15″ 15″
DRIVE FAN  HYD W/GEAR BOX PTO GEAR BOX HYD W/GEAR BOX PTO GEAR BOX
DRIVE AUGER GEARBOX W/CHAIN  GEARBOX W/CHAIN  GEARBOX W/CHAIN  GEARBOX W/CHAIN
HITCH TYPE  FRONT END LOADER 3-POINTS CAT.Ⅰ FRONT END LOADER  3-POINTS CAT.Ⅰor Ⅱ
HITCH ADJUSTMENT  LD PIN
LD PIN
CHUTE DEFLECTOR HANDING/4POSITION/115°-145° HANDING/4POSITION/115°-145° HANDING/4POSITION/115°-145° HANDING/4POSITION/115°-145°
CUTTING EDGE  3/8″x4″Beveled 3/8″x4″Beveled 3/8″x4″Beveled 3/8″x4″Beveled
SKID SHOES  Cup type adjustable Cup type adjustable Cup type adjustable Cup type adjustable
SYSTEM hyd.loader flow pto w/shear  hyd.loader flow pto w/shear
CONTROLS&DRIVE SENSING BLOCK  PIN SENSING BLOCK  PIN
HYD.REQUIEMENTS 6.6-13.2gpm 2000psi min  no 6.6-13.7gpm 2000psi min  no
TRACTOR HP 25-35hp 20-35hp 25-55hp 25-55hp
APPROX WEIGHT 700lbs 700lbs 800lbs 800lbs
