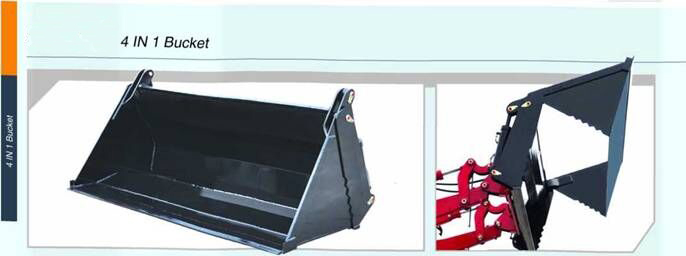

TZ 4 IN 1 Bucket For Front End Loader

1. Good quality 4 IN 1 FEL;
2. Powerful 4 IN 1 front end loader.
Quantity:
  • TZ

  • FOTMA

4 IN 1 bucket gives you unbeatable versatility, which makes the multi-purpose bucket welcome news for professional users. All models areavailable with Euro or ssp Quick Hitch and can easily switch between. Both the bottom and back of the bucket are made in a box design, which gives it a torsionally rigid and robust construction. The bucket has three hardened, abrasion-resistant cutting edges: one at the leading edge of the bucket, one at the back edge and one at the bottom of the bucket front section. It is also fitted with toothed interiors for maximum grip. If you want to
get the highest possible work capacity from your bucket, then the 4 IN 1bucket is the obvious choice.

Features:
1. Bottom unloading, with improved unloading height.
2. Open bucket, can be used for land levelling or excavating.
3. Flexible grabbing function.
4. Sanding or gravelling via reasonable bottom opening.

Cross Profile Model                                      Bucket Type                          Width(mm)                              Capacity(m1 2 3 4)                    Weight(Kg)
04DF 04DF140 1400 0. 26 175

04DF150 1500 0. 28 182

04DF160 1600 0. 30 190
08DF 08DF160 1600 0.46 280

08DF170 1700 0. 50 292

08DF190 1900 0. 56 315

08DF210 2100 0.62 340
12DF 12DF200 2000 0.84 380

12DF220 2200 0.92 400




420
16DF 12DF240 2400 1

16DF240 2400 1. 30 545
