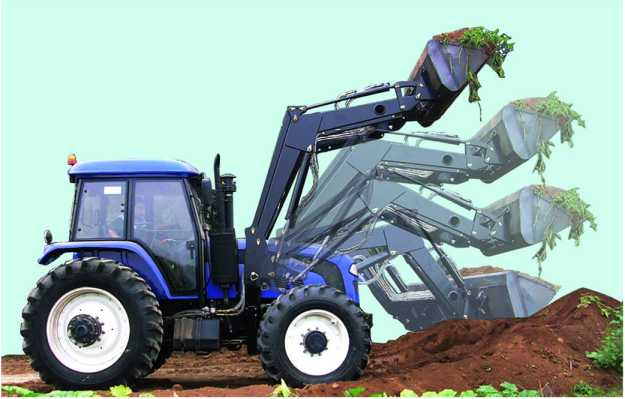

TZ
FOTMA
Loader Model | | | TZ02D | TZ03D | TZ04D | TZ06D | TZ08D | TZ10D | TZ12D | TZ16D |
Matching Tractor | | hp | 15 〜25 | 20 〜40 | 30 〜55 | 45 〜60 | 55-75 | 70〜100 | 90 〜140 | 140 〜180 |
Max. Lifting Height at Implement Pivot Pin | H | mm | 2350 | 2550 | 2740 | 3010 | 3400 | 3710 | 3970 | 4260 |
Dumping Height | A | mm | 1730 | 1840 | 2100 | 2370 | 2480 | 2720 | 3000 | 3200 |
Overloading Height | L | mm | 2170 | 2370 | 2560 | 2830 | 3220 | 3490 | 3770 | 4000 |
Dumping Distance | W | mm | 370 | 500 | 600 | 640 | 690 | 740 | 900 | 900 |
Ground Clearance at Arm Pivot Pin | B | mm | 1120 | 1200 | 1360 | 1500 | 1630 | 1780 | 1930 | 1930 |
Max.Tip in Angle | X | degree ° | 48 | 48 | 48 | 48 | 54 | 54 | 54 | 54 |
Tip out Angle | Z | degree ° | 52 | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
Crowd angle at lowered lift arm | V | degree° | 140 | 135 | 135 | 135 | 135 | 145 | 145 | 145 |
Digging Depth | s | mm | 90 | 100 | 100 | 120 | 140 | 180 | 200 | 200 |
Lifting Force at Implement Pivot | Qi | Kg | 1821 | 2224 | 2144 | 2150 | 1997 | 2308 | 2403 | 2620 |
Pin | Q2 | Kg | 1184 | 1474 | 1321 | 1286 | 1187 | 1452 | 1690 | 1850 |
Bucket Model (Standard) | | | 02DP125 | 04DP125 | 04DP140 | 06DP150 | 08DP160 | 08DP170 | 12DP200 | 16DP240 |
Bucket Width | | mm | 1250 | 1250 | 1400 | 1500 | 1600 | 1700 | 2000 | 2400 |
Bucket Capacity | | m3 | 0.16 | 0.18 | 0.21 | 0.35 | 0.4 | 0.44 | 0.7 | 1.6 |
Rated Lifting Capacity | | Kg | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 | 1600 |
