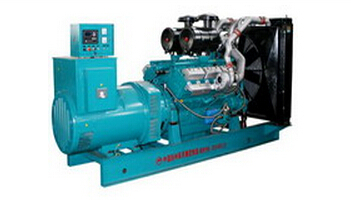

Tongchai Series 90-200kw Generator

Quantity:
  • Tongchai
MODEL OF GEN-SET  GB90N GB120N GB140N GB200N
DIESEL  ENGINE Rate output of gen-set (kw) 90KW 120KW 140KW 200KW
Model 6135AD 6135ZD 6135AZD NT137LR22
Type Water-cooled, Four-stroke, in-line, direct injection
No.of cyliner 6 6 6 6
Bore X Stroke (mm) 135×150 135×140 135×150 135x160
Ttl. Displacement (L) 12.9 12 12.9 13.74
Compression ratio 17:01 16:01 16:01 16:01
Induction system Natural Turbocharged
Rated output (kw) 110 KW 140KW 162KW 220KW
Max output in 12 hours(kw) 121KW 154KW 178KW 242KW
Rated speed (rpm) 1500
Fuel consumption (g/kw.h) 220 215 215 208
Oil Capacity(L) 28.7 28.7 28.7 28.7
Cooling method water-cooled with radiator
Starting method D.C.24V Electric starting
ALTERNATOR Model (stamford ) UCI274D UCI274F UCI274G UCD274K
Rated power 90KW 120KW 140KW 200KW
Rated voltage 380/220, 400/230,  etc.
Rated current According to the selected voltage
Rated frequency 50HZ
Rated speed (rpm) 1500
Power factor 0.8 lagging
Phase connection 3-phase
Winding connection 12-wire
Excitation method Brushless
Voltage regulation AVR
CONTROL PANEL V-meter, A-meter, Frequency meter, air breaker, transfer switch, AVR, temp.and pressure gauges, indicating lamp, hour meter, etc.
G. WET (kg) 1800 2200 2300 3150
