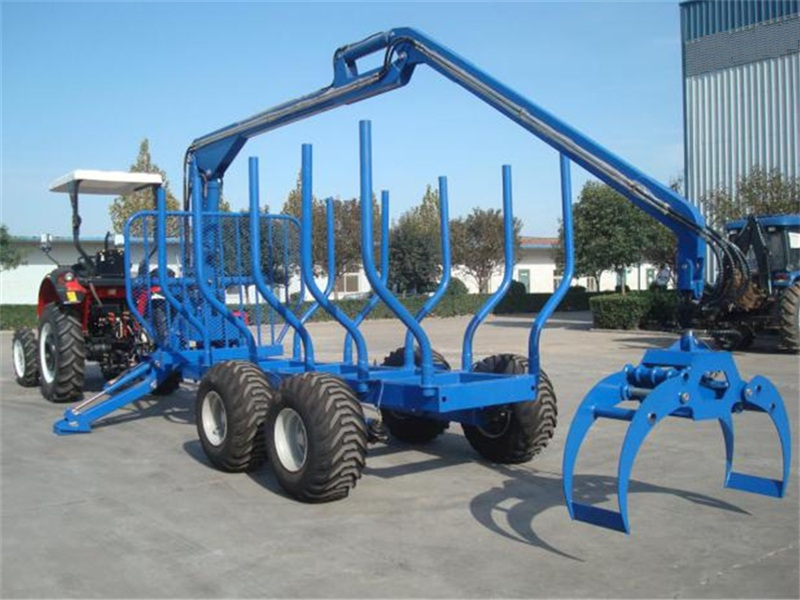

ZM1002/3004/5004/8006/10006/12006
FOTMA
Model | ZM1002 | ZM3004 | ZM5004 | ZM8006 | ZM10006 | ZM12006 |
Loading weight | 1 T | 3 T | 5 T | 8 T | 10 T | 12 T |
Matching power | 10-20hp | 20-40 hp | 50-60 hp | 70-80 hp | 80-90 hp | 90-100 hp |
Machine weight | 1010 kg | 1790 kg | 2040 kg | 2750 kg | 3000 kg | 3200 kg |
Trailer model | TR10 | TR30 | TR50 | TR80 | TR100 | TR120 |
Loading square | 0.85m2 | 1.0m2 | 1.6m2 | 2.2m2 | 2.5m2 | 2.8m2 |
Length | 3.6 m | 5.1 m | 5.1 m | 5.9 m | 6.3 m | 6.3 m |
Width | 1.4 m | 1.6 m | 1.8 m | 2.2 m | 2.3 m | 2.5 m |
Trailer loading length | 2.0 m | 3.1 m | 3.1 m | 3.7 m | 4.3 m | 4.3 m |
Assistant hydraulic steering | No | Yes | Yes | Yes | Yes | Yes |
Tire model | 6.00-13 | 7.00-16 | 8.25-16 | 400/60-15.5 | 400/60-15.5 | 400/60-15.5 |
Lifting machine model | CR02 | CR04 | CR04 | CR06 | CR06 | CR06 |
Lifting capacity/Arm reach | 400kg/2m 300kg/3m 200kg/3.5m | 1280kg/2m 760kg/3m 500kg/4m 450kg/4.3m | 1280kg/2m 760kg/3m 500kg/4m 450kg/4.3m | 1280kg/2m 760kg/3m 500kg/4m 340kg/5m 240kg/6m | 1280kg/2m 760kg/3m 500kg/4m 340kg/5m 240kg/6m | 1280kg/2m 760kg/3m 500kg/4m 340kg/5m 240kg/6m |
Rotating angle | 370° | 400° | 400° | 400° | 400° | 400° |
Max. grab opening width | 1140mm | 1300mm | 1300mm | 1430mm | 1430mm | 1430mm |
Grabbing dia.of logs | 80-420mm | 70-485mm | 70-485mm | 75-530mm | 75-530mm | 75-530mm |
