FOTMA
Wood Splitter
Uses:

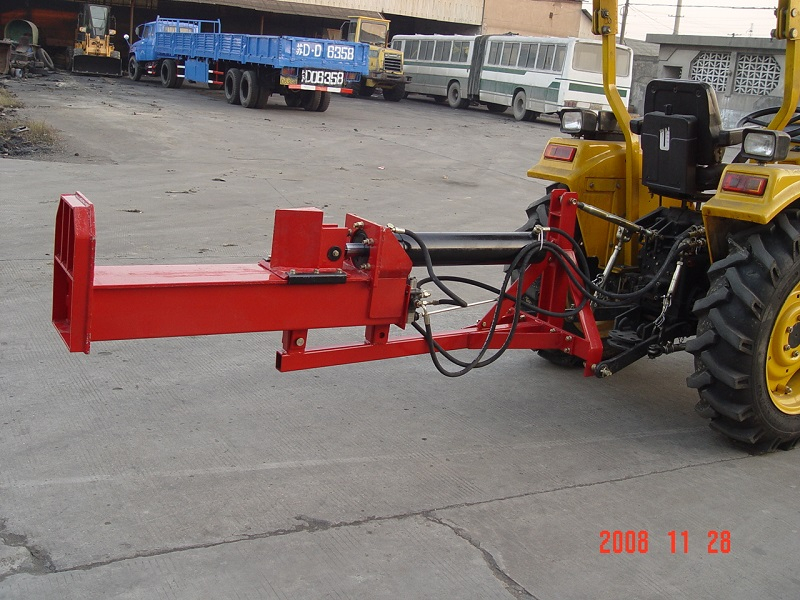

With horizontal or vertical positioning when splitting, the 3-point linkage mounted log splitter is ideal for making logs more manageable and preparing fire wood and fence stumps.
Features:
Hydraulic operation makes wood splitting easy and safe;
Horizontal or vertical positioning;
Wide blade for multiple log splitting;
Easy for one person to operate
Wood Splitter
Uses:
With horizontal or vertical positioning when splitting, the 3-point linkage mounted log splitter is ideal for making logs more manageable and preparing fire wood and fence stumps.
Features:
Hydraulic operation makes wood splitting easy and safe;
Horizontal or vertical positioning;
Wide blade for multiple log splitting;
Easy for one person to operate
Splitter Specifications | |||
Model | WX350 | WX310 | WX410 |
Cylinder Diameter | 4" | 4" | 4" |
Cylinder Stroke | 24" | 24" | 24" |
Splitting Force @ 3000 psi | 20 ton/31 ton | 20 ton/31 ton | 20 ton/31 ton |
Splitter Orientation | Vertical | Horizontal | Horizontal |
Avg. Stroke Cycle Time | Approx. 7 secs | Approx. 7 secs | Approx. 7 secs |
Full Stroke Cycle Time | Approx. 14 secs | Approx. 14 secs | Approx. 14 secs |
Weight | 239 lbs. | 220 lbs. | 339 lbs. |
Dimensions (L x W x H inches) | 1720mmx830mmx610mm 68 in x 33 in x 24 in | 1700mmx800mmx540mm 67 inx 31.5 inx 21.5 in | 1850mmx1210mmx530mm 73 inx48 inx 21 in |
Recom. Min. Hyd. Flow | 16Mpa | 16Mpa | 16Mpa |
