1. Direct injection engine, energy-saving, environmental protection, powerful, large torque reservation, good stability and moretechnologically-advanced.
2. Enhanced chasis, large tractive force, dual power output, powerful and high efficiency.
3.More suitable for variety of fields operation and transportation;low fuel consumption,better performance.
4.Lighter weight, with good sealing, more suitable for paddy field operation.
Enclosed brake, making stable and reliable braking.
5.Double-action clutch,easy operation and reliable.
6.A wide range of agricultural implements.planetary gear reducer applies higher reduction ratio,high driving strength.
7. Ergonomic design and comfortable riding.
1. Direct injection engine, energy-saving, environmental protection, powerful, large torque reservation, good stability and moretechnologically-advanced.
2. Enhanced chasis, large tractive force, dual power output, powerful and high efficiency.
3.More suitable for variety of fields operation and transportation;low fuel consumption,better performance.
4.Lighter weight, with good sealing, more suitable for paddy field operation.
Enclosed brake, making stable and reliable braking.
5.Double-action clutch,easy operation and reliable.
6.A wide range of agricultural implements.planetary gear reducer applies higher reduction ratio,high driving strength.
7. Ergonomic design and comfortable riding.

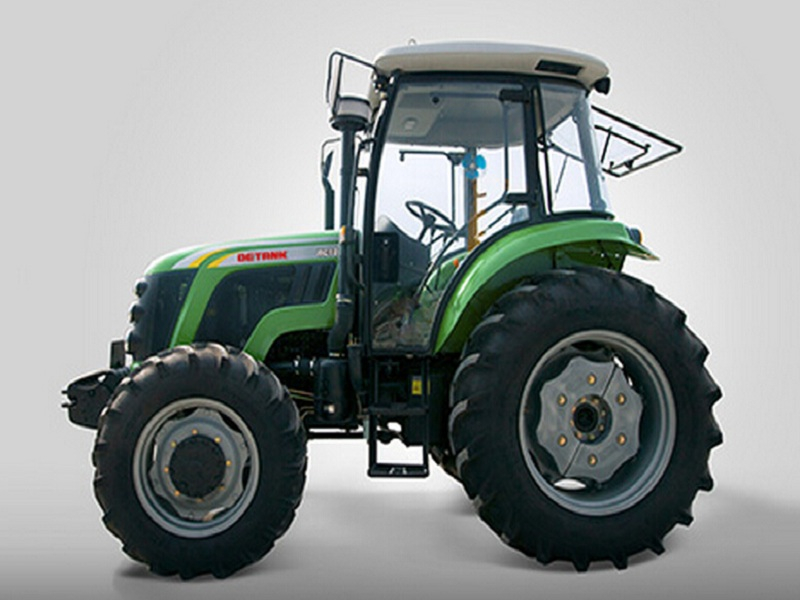

Model | RC1004 |
Dive Type | 4x4 |
Overall Demension(L*W*H) (mm) | 4382*2083*(2760/2810) |
Rated Power(kw) | 73.5 |
Engine Cylinder | 4,Turbo |
Rated Traction(kN) | 21.3 |
PTO(r/min) | 540/1000 |
Front Wheel Tread(mm) | 1600 1688 1708 1769 1822 1842 1930 |
Rear Wheel Tread(mm) | 1616 1703 1818 1901 2016 |
Wheelbase(mm) | 2192 |
Min.Ground Clearance | 415 |
Max.Lifting Force(kN) | 16.5 |
Gearbox | 16F+8R |
Tire | 12.4-24/16.9-34 |
●Standard Configuration
YTO Turbo Engine /16F+8R Creeper Gear/2 Pairs of Hydraulic output/ High Pressure Lifter /Fixed Drawbar/Outer Air Filters/Cabin with Fan
●Optional Configurations
YUCHAI Turbo Engine /QUANCHAI Natural Aspiration Engine/ 16F+8RShuttle Gear/PTO:540/760,760/1000,760/850/Air Brake / Welding Adjustable Drawbar/Swing Drawbar / 360°Rotary Drawbar/ ROPS / Cabin with A/C or Heater / Inner Air Filter/Counterweight (Front and rear)
