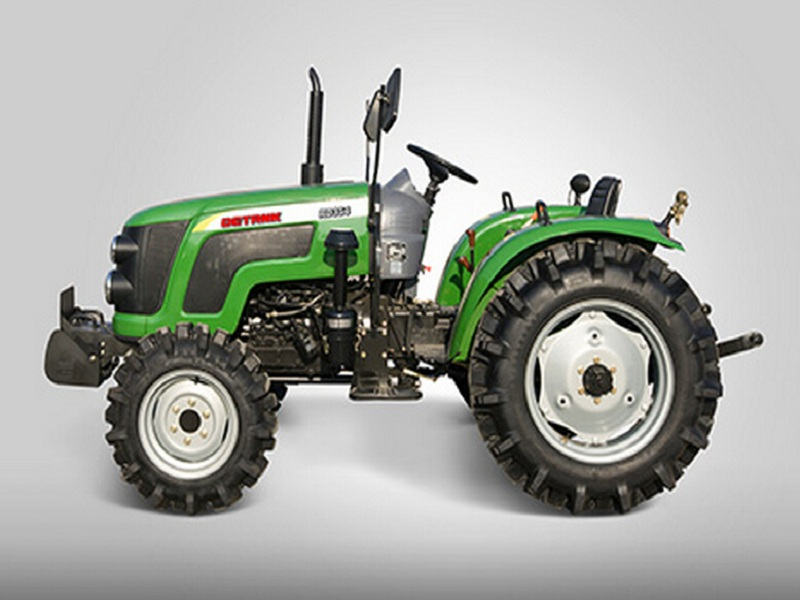

Zoomlion RD354 Tractor

Quantity:
  • Zoomlion

1.Equipped with 3cylinder engine, GDI engine, start convenient, low fuel consumption, high traction, high reliability and high coefficient of torque reserve.
2.With heavy-duty chassis, high traction, and high double-speed PTO shaft, It works more efficiency.
3.Transmission gears 8F+8R,featuring  reasonable speed-matching,high working efficiency, and good fuel economy.
4.Shift sleeve adopted, featuring convenient, confortable and reliable control.
5.Reinforced dual-speed power take-off, the shift sleeve, featuring the wide range of optional machinery and tools and high reliability.
6.The hydraulic lifter uses the force control, position control, or individual force or position control, featuring  convenient operation and reliable performance.
7.A new generation of steamlinehood, with beautiful and elegant appearance, conforming to the safety, dust-proof, noise-reduction, heat-removal and other performance requirements.
8. Rear wheelbase can be stepless adjusted, fits for ridge culture.
9.Compacted structure, short wheel base,  small turning radius, fits in small land farming.
Model RD354
Drive Type 4×4
Overall Demension(L×W×H) (mm)
3312×1524×2556
Rated Power (kw) 25.7
Engine Cylinder 4
Rated Traction (kN) 10.5
PTO r/min 540/1000
Front Wheel Tread (mm) 1250
Rear Wheel Tread (mm) 960~1460
Wheelbase (mm) 1706/1780
Min.Ground Clearance 290
Max.Lifting Force (kN) 5.79
Gearbox 8F+8R
Tire 6.5-16/11.2-24

●Standard Configuration
LAIDONG Engine/Dual Action Clutch / Simple Hydraulic Output /Semi-Separation Lifter / Fixed Drawbar / Outer Air Filters
●Optional Configurations
Singlel Action Clutch / PTO:540/720 / 8F+8R Shulltle Shifter/2 Pairs of Hydraulic output / Air Brake / Swing Drawbar / ROPS / Cabin with Fan or Heater/Inner Air Filter / Inner Air Filter/Counterweight(Front and Rear)/4×2
