1.Direct injection engine, energy-saving, environmental protection, powerful, large torque reservation, good stability and more technologically-advanced.
2.Enhanced chassis, large tractive force, dual power output, powerful and high efficiency.
3.Applies 8F+2R gear,,optional 8F+8R sleeve shuttle shift, more suitable for variety of fields operation and transportation;low fuel consumption,better performance.
4.Lighter weight,with good sealing,more suitable for paddy field operation.
5.Enclosed brakemaking stable and reliable braking.
6.Double-action clutch,easy operation and reliable.
7.A wide range of agricultural implements. planetary gear reducer applies higher reduction ratio,high driving strength.
8.Ergonomic design and comfortable riding.
1.Direct injection engine, energy-saving, environmental protection, powerful, large torque reservation, good stability and more technologically-advanced.
2.Enhanced chassis, large tractive force, dual power output, powerful and high efficiency.
3.Applies 8F+2R gear,,optional 8F+8R sleeve shuttle shift, more suitable for variety of fields operation and transportation;low fuel consumption,better performance.
4.Lighter weight,with good sealing,more suitable for paddy field operation.
5.Enclosed brakemaking stable and reliable braking.
6.Double-action clutch,easy operation and reliable.
7.A wide range of agricultural implements. planetary gear reducer applies higher reduction ratio,high driving strength.
8.Ergonomic design and comfortable riding.

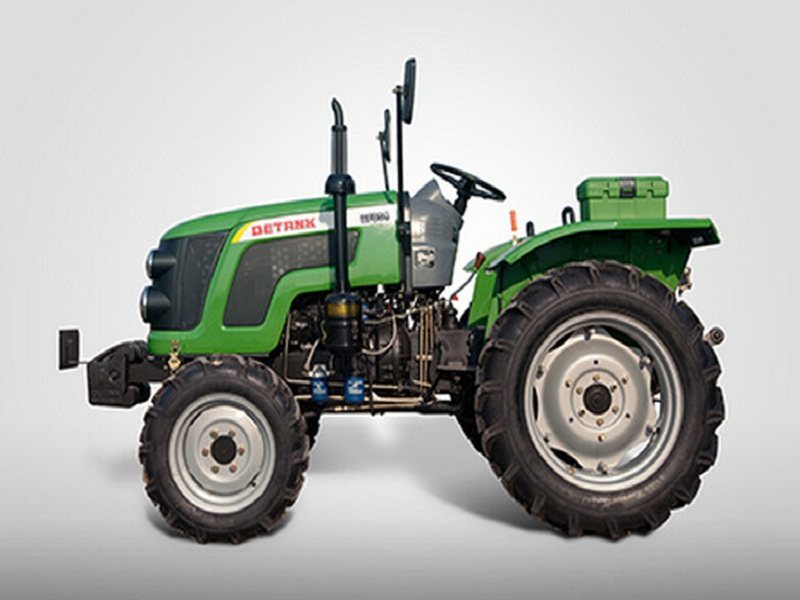

Model | RF354 |
Drive Type | 4×4 |
Overall Demension(L×W×H) (mm) | 3312*1610*2300 |
Rated Power (kw) | 26.5 |
Engine Cylinder | 4 |
Rated Traction (kN) | 9 |
PTO r/min | 540/1000 |
Front Wheel Tread (mm) | 1200 |
Rear Wheel Tread (mm) | 1100/1200/1300(1200/1300) |
Wheelbase (mm) | 1818(1926) |
Min.Ground Clearance | 395 |
Max.Lifting Force (kN) | ≥5.79 |
Gearbox | 8F+2R(8F+8R) |
Tire | 6.50-16/ 11.2-24 |
●Standard Configuration
CHANGCHAI Engine /Dual Action Clutch / Simple Hydraulic Output / Fixed Drawbar /Outer Air Filters
●Optional Configurations
PTO: 540/730 / 2 Pairs of Hydraulic output / Air Brake / Swing Drawbar / 360°Rotary Drawbar / ROPS/Fixed Cabin (Fan or Heater) / Foldable Cabin (Fan or Heater) / Counterweight(Front and rear)/4×2
