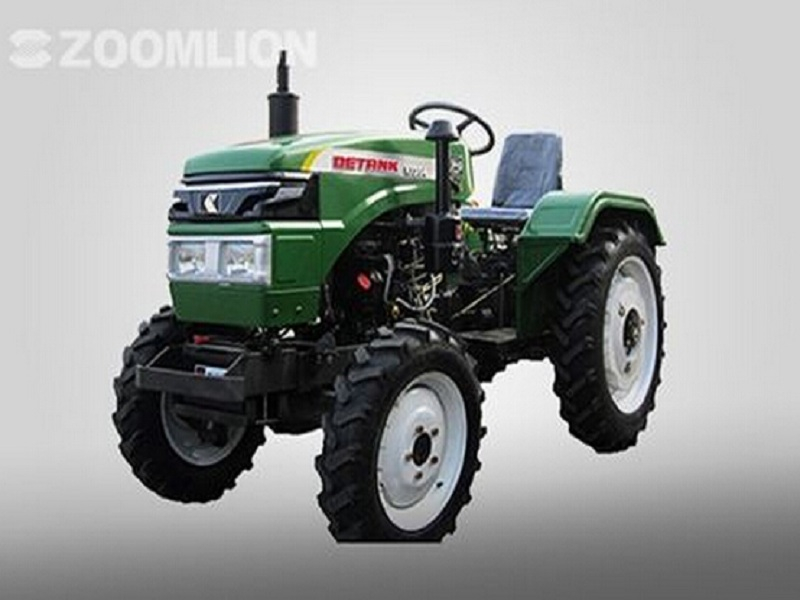

Zoomlion RX304 Tractor

Quantity:
  • Zoomlion

1.Start convenient, low fuel consumption, high traction, high reliability and high coefficient of torque reserve.
2.With heavy-duty chassis, high traction, and high double-speed PTO shaft, It works more efficiency.

3.Transmission gears 8F+8R,featuring reasonable speed-matching,high working efficiency, and good fuel economy.

4.Shift sleeve adopted, featuring convenient, confortable and reliable control.

5.Reinforced dual-speed power take-off, the shift sleeve, featuring the wide range of optional machinery and tools and high reliability.

6.The hydraulic lifter uses the force control, position control, or individual force or position control, featuring convenient operation and reliable performance.

7.A new generation of steamlinehood, with beautiful and elegant appearance, conforming to the safety, dust-proof, noise-reduction, heat-removal and other performance requirements.

8. Rear wheelbase can be stepless adjusted, fits for ridge culture.

9.Compacted structure, short wheel base, small turning radius, fits in small land farming.
Model RX304
Drive Type 4×4
Overall Demension(L×W×H) (mm) 2870×1380×1900
Rated Power (kw) 16.2
Engine Cylinder Double Cylinder
Rated Traction (kN) 7.5
PTO r/min 540
Front Wheel Tread (mm) 1060
Rear Wheel Tread (mm) 1200(can be adjusted)
Wheelbase (mm) 1650
Min.Ground Clearance 370
Max.Lifting Force (kN) 4.9
Gearbox 8F+2R
Tire 6.00-16/8.3-24
●Standard Configuration
Double Cylinder “DEL”Engine / 6F+2R/Starting Method: Electric/Single Action Cluth/ Outer air filter/Manual steering
●Optional Configurations
One set hydraulic output/Two sets of hydraulic output/Four-Wheel drive (All models can be equipped with four-wheel drive) Front mudguard/Cab/Hydraulic steering/RIPS/Differential lock
